Please note: Where the product is not shown on your particular vehicle, images used are for illustration purposes only and the actual product design may differ.
Where form truly meets function. The Raid series of bull bars are a great option for those who appreciate sharp looks, while still achieving improved approach angles, greatly improved frontal protection, light mounting & full winch compatibility. A sleek urban design, with the toughest of tough-track capability.
12,000LB WINCH COMPATIBLE
Industry standards recommend a winch that's at least 1.5 times of your vehicle & with up to a GVM from 3060kg to 3300kg, the Landcruiser will require a winch that can pull at least 10,900lb. That's why we're ensured the Raid bull bar is compatible with a 12,000lb winch.
INCLUDED RECOVERY POINTS

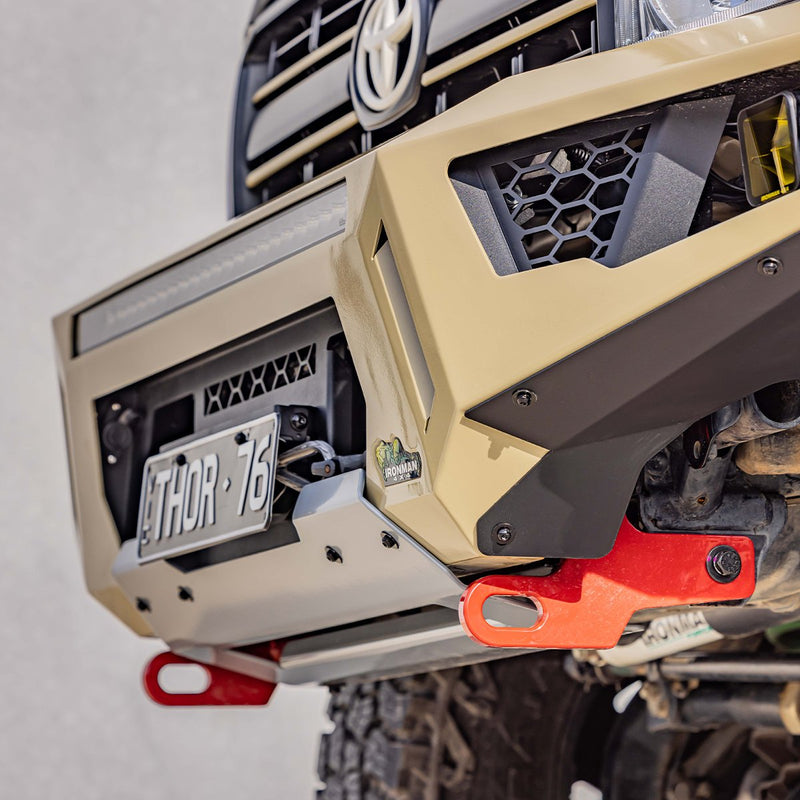

We think recovery points are so important, we've included them in the bull bar. The recovery points are manufactured from 16mm steel, featuring non-abrasive radius edges and an elongated hole for different types of shackles. Plus they're powder coated red for high visibility & are rated to 5-tonne (per point).
SAFETY IS A PRIORITY
Ironman 4x4's Raid series program incorporates all factory OEM safety features. Safety is not limited t the factory features. Ironman 4x4 performs in house FEA & ADR compliance testing & complies with all state & territory regulations, meeting industry standards.
KEYS FEATURES
- Winch cradle mounted directly to the chassis for the strongest & safest possible winching platform for the harshest recovery situations
- The bull bar is made from 3mm steel & the winch cradle is made from 5mm steel
- Winch cradle with included clutch handle access & line visibility
- Included two 5-tonne recovery points & 4mm skid plate
- Provision for center light bar, cube or fog lights
- Provision for 7" or 9" Scope lights on top of bar
- Vehicle safety features maintained with radar compatibility featured in the newer models
- Suits 76/78 Series 2007+ & 79 Series Dual Cab 2013+
- 79 Series Single Cab version coming soon.
Specifications
| WINCH COMPATIBILITY |
Compatible with up to 12,000lb winches.
Hidden Control box mount (WWBCP001) & Winch extension cable (WWB032) included when winch selected in drop down.
|
|
DRIVING LIGHT MOUNTS
|
Integrated 32" LED Light Bar Slot & Provisions for 4 x 20W Cube Lights or ADR Compliant fog lights. Compatible with Round Driving Lights. |
| RECOVERY POINTS |
Yes
|
| ADR COMPLIANT |
Yes |
| RADAR & AIRBAG COMPATIBLE |
Yes |
| BUMPER REPLACEMENT |
Bumper cut required |
| POWDER COATING |
Matte Black Textured Powder coated Finish |
PRE-ORDERS AVAILABLE - DUE NOVEMBER 2023
Warranty: 3 Years (excl. 3rd party colour coding)
*Includes integrated Recovery Points
