TO SUIT: NISSAN NAVARA 3. NP300 2015 - 2020 (COIL VARIANT) 2. NP300 2015 - 2020 (LEAF VARIANT) 4. NP300 2015 - 2020
SLEEK, STYLISH, FUNCTIONAL
Where form truly meets function – and ripper value!

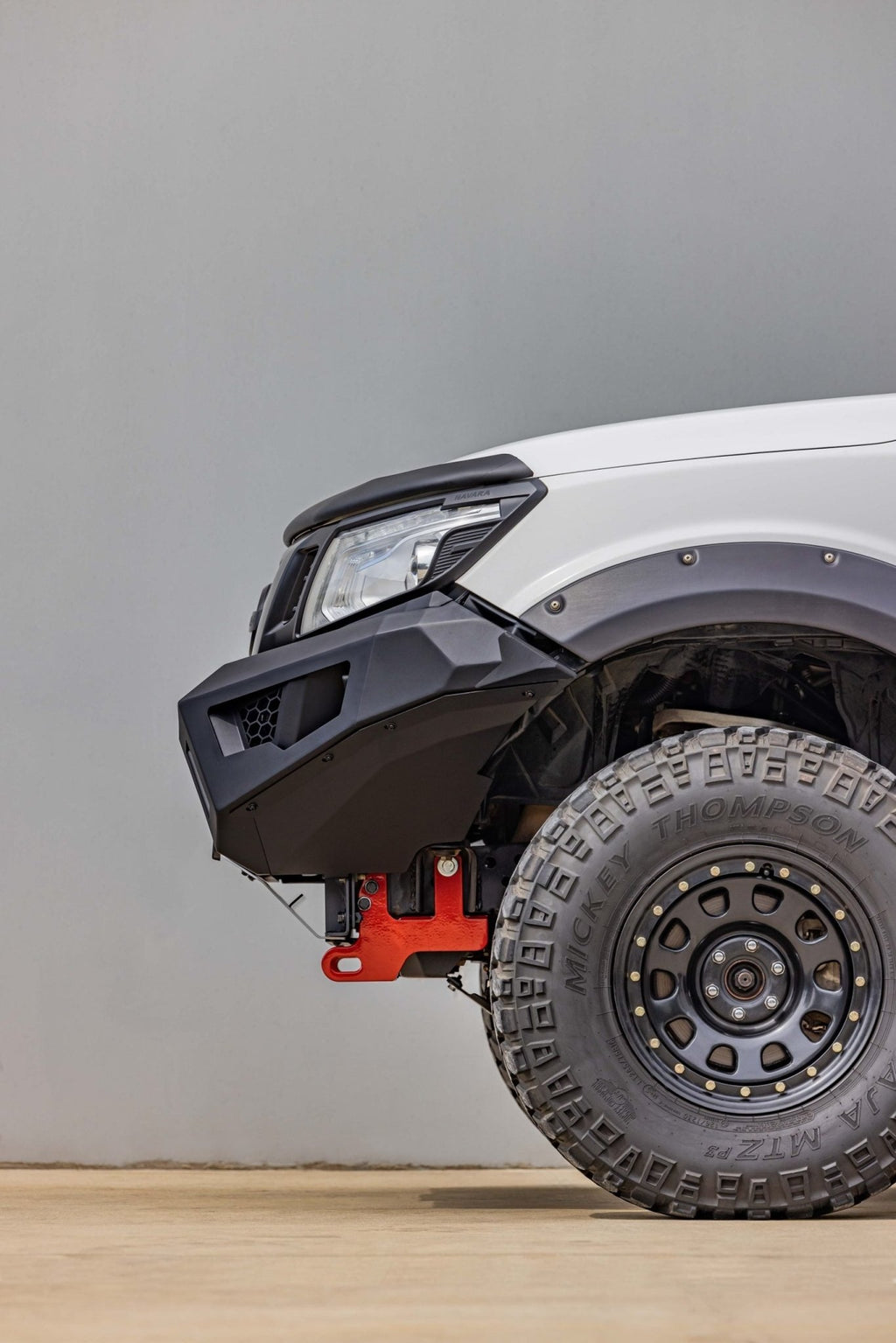

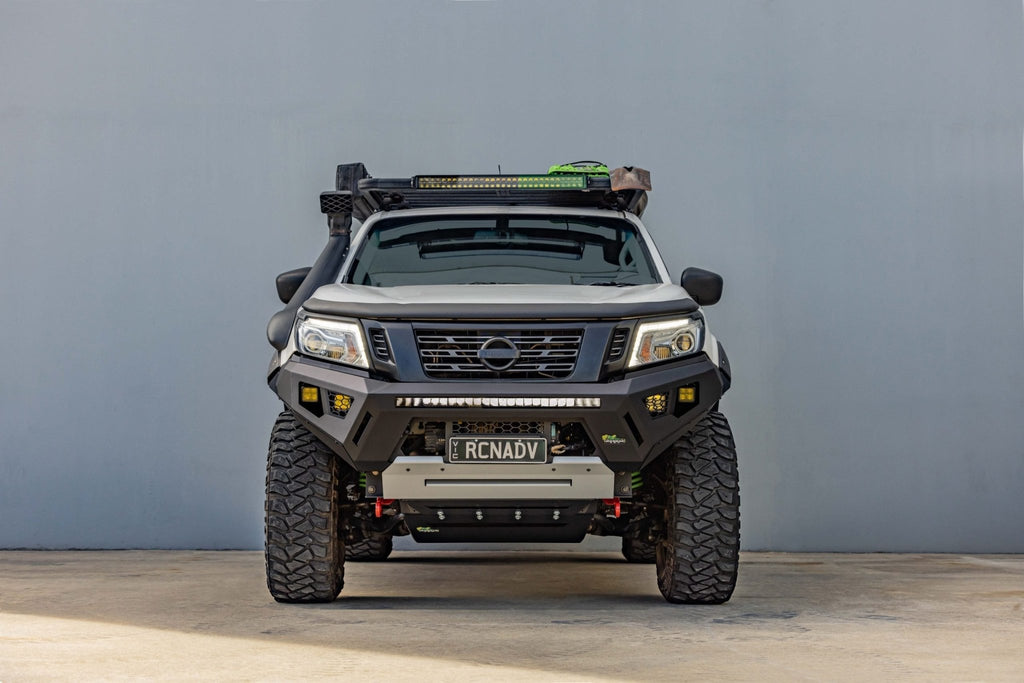

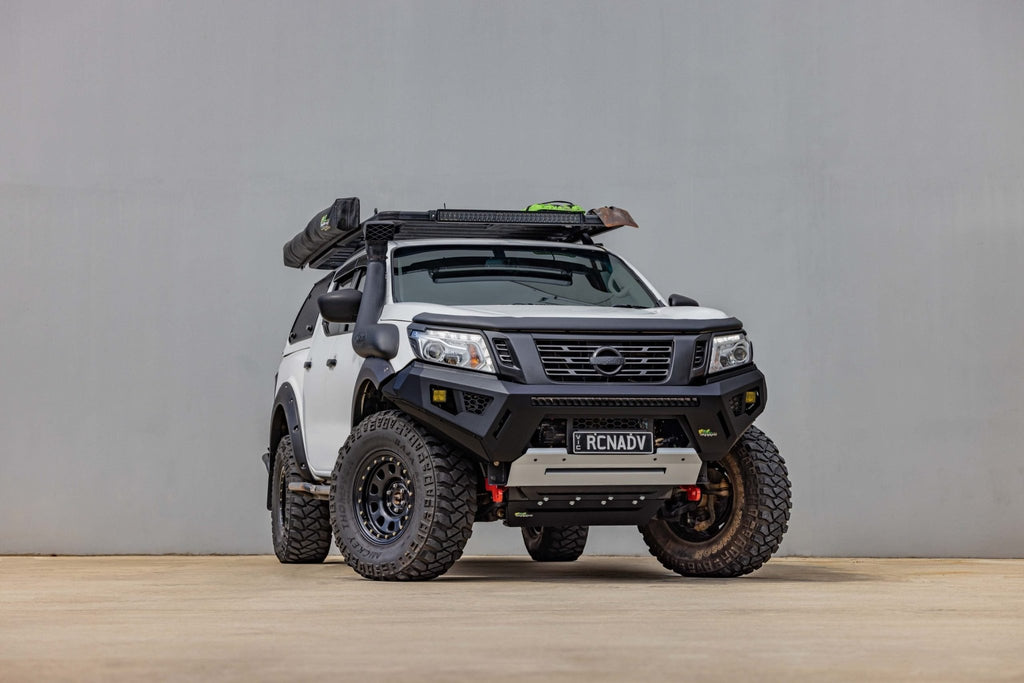

The Raid Bar to suit the Nissan Navara NP300 is a great option for those who appreciate sharp looks, better approach angles, greatly improved frontal protection, light mounting and full winch compatibility. A sleek urban design, with the toughest of tough-track capabilities..
12,000LB WINCH COMPATIBLE
Industry standards recommend a winch that’s at least 1.5 times the weight of your vehicle, and with up to a GVM of 2910kg, the Navara demands nothing less than 9,623lb winch. That’s why we’ve ensured the Raid bull bar is compatible with a 12,000lb winch.
INCLUDED RECOVERY POINTS

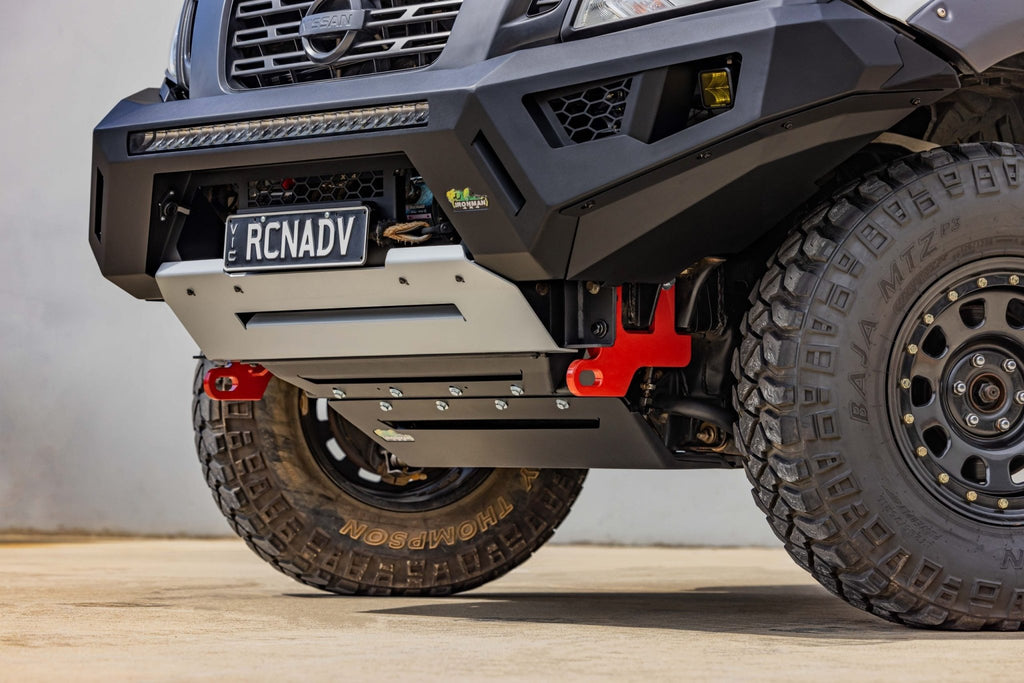

We think recovery points are so important, we’ve included them in the bull bar. The recovery points are manufactured from 16mm steel, featuring non-abrasive radius edges and an elongated hole for different types of shackles. Plus, they’re powder-coated red for high visibility and are rated to 5-tonne (per point).
SAFETY IS A PRIORITY
Ironman 4×4’s Raid Bars incorporate all factory OEM safety features. Safety is not limited to the factory features, Ironman 4×4 performs in-house FEA and ADR compliance testing and complies with all state and territory regulations, meeting industry standards.
FEATURES NOT TO FORGET
-
Winch cradle mounted directly to the chassis for the strongest and safest possible winching platform for the harshest recovery situations
-
The bull bar is made from 3mm steel, and the winch cradle is made from 5mm steel
-
Winch cradle with included clutch handle access and line visibility
-
Included two 5-tonne recovery points and 4mm skid plate
- Provison for centre light bar, cube or fog lights
-
Vehicle safety features maintained with radar and sensor compatibility
-
Centre plate and underpans designed with additional air ducting to maximise airflow to the intercooler
- Matte black textured powdercoat finish
Specifications
WINCH
COMPATIBILITY |
Compatible with up to 12,000lb winches. Hawse only. Hidden winch mount optional |
| RECOVERY POINTS |
Included – 16mm Rated Recovery Points |
| NUMBER PLATE LOCATION |
Flip-up Number Plate Bracket Provided |
| PARK LIGHT/INDICATOR |
Indicator and Park Light MUST sit in the Outer Position Light Pod – Light Bracket Included. |
| LIGHT BAR SLOT |
Provision for optional 32″ Bright Sabre Single Row Light Bar. Included mesh infill panel for when a light bar is not installed. |
| CUBE LIGHT OPTIONS |
Provisions for optional 20W Bright Cube Lights to be mounted to the two Inner Light Pods |
| ADR COMPLIANT |
Complies with all State and Territory Requirements |
AIRBAG
COMPATIBLE |
Yes |
SENSOR & RADAR
COMPATIBLE |
Yes |
| STEEL THICKNESS |
3mm Bull Bar Body, 5mm Winch Cradle Bracket and 4mm Skid Plate |
| POWDER COATING |
Matte Black Textured Finish |
Warranty: 3 Years (excl. 3rd party colour coding)
*Includes integrated Recovery Points
Please note: Where the product is not shown on your particular vehicle, images used are for illustration purposes only and the actual product design may differ.
