SLEEK, STYLISH, FUNCTIONAL
Where form truly meets function – and ripper value!

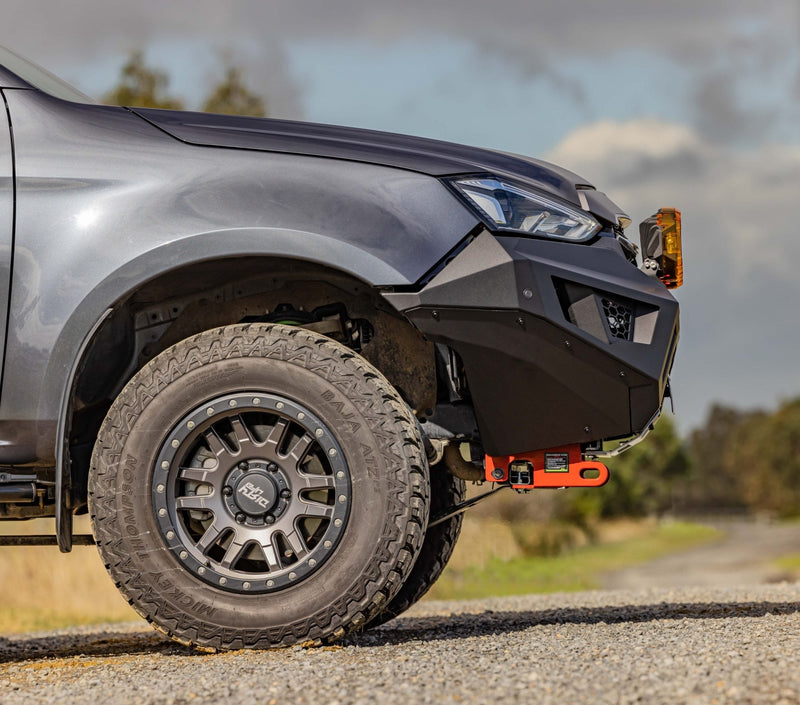

The Raid Bar to suit the Isuzu MU-X is a great option for those who appreciate sharp looks, better approach angles, greatly improved frontal protection, light mounting and full winch compatibility. A sleek urban design, with the toughest of tough-track capabilities.
12,000LB WINCH COMPATIBLE
Industry standards recommend a winch that’s at least 1.5 times the weight of your vehicle, and with up to a GVM of 2,800kg, the MU-X demands nothing less than a 9,259lb winch. That’s why we’ve ensured the Raid Bar is compatible with either a 9,500lb or 12,000lb winch.
INCLUDED RECOVERY POINTS
We think recovery points are so important, we’ve included them in the bull bar. The recovery points are manufactured from 16mm steel, featuring non-abrasive radius edges and an elongated hole for different types of shackles. Plus, they’re powder-coated red for high visibility and are rated to 5-tonne (per point).
SAFETY IS A PRIORITY
Ironman 4×4’s Raid Bars incorporate all factory OEM safety features. Safety is not limited to the factory features, Ironman 4×4 performs in-house FEA and ADR compliance testing and complies with all state and territory regulations, meeting industry standards.
FEATURES NOT TO FORGET
-
Winch cradle mounted directly to the chassis for the strongest and safest possible winching platform for the harshest recovery situations
-
The bull bar is made from 3mm steel, and the winch cradle is made from 5mm steel
-
Winch cradle with included clutch handle access and line visibility
-
Included two 5-tonne recovery points and 4mm skid plate
- Provison for centre light bar, cube or fog lights
-
Vehicle safety features maintained with radar and sensor compatibility
-
Centre plate and underpans designed with additional air ducting to maximise airflow to the intercooler
- Matte black textured powdercoat finish
Specifications
WINCH
COMPATIBILITY |
Compatible with up to 12,000lb winches. Hawse only. Hidden winch mount optional |
| RECOVERY POINTS |
Included – 16mm Rated Recovery Points |
| NUMBER PLATE LOCATION |
Flip-up Number Plate Bracket Provided |
| PARK LIGHT/INDICATOR |
Indicator and Park Light MUST sit in the Outer Position Light Pod – Light Bracket Included. |
| LIGHT BAR SLOT |
Provision for optional 32″ Bright Sabre Single Row Light Bar. Included mesh infill panel for when a light bar is not installed. |
| CUBE LIGHT OPTIONS |
Provisions for optional 20W Bright Cube Lights to be mounted to the two Inner Light Pods |
| ADR COMPLIANT |
Complies with all State and Territory Requirements |
AIRBAG
COMPATIBLE |
Yes |
SENSOR & RADAR
COMPATIBLE |
Yes |
| STEEL THICKNESS |
3mm Bull Bar Body, 5mm Winch Cradle Bracket and 4mm Skid Plate |
| POWDER COATING |
Matte Black Textured Finish |
Warranty: 3 Years (excl. 3rd party colour coding)
*Includes integrated Recovery Points
Please note: Where the product is not shown on your particular vehicle, images used are for illustration purposes only and the actual product design may differ.
