Please note: Where the product is not shown on your particular vehicle, images used are for illustration purposes only and the actual product design may differ.
Warranty: 5 Years.
*Crossbar (x 2) and Fit Kit (Dual Cab) - 1250mm Width
Kit Includes
• Set of 2 Crossbars – 1250mm long (Component Part Number: IFR0516)
• Flush Kit (Component Part Number: IFR1007)
Weight: 6KG

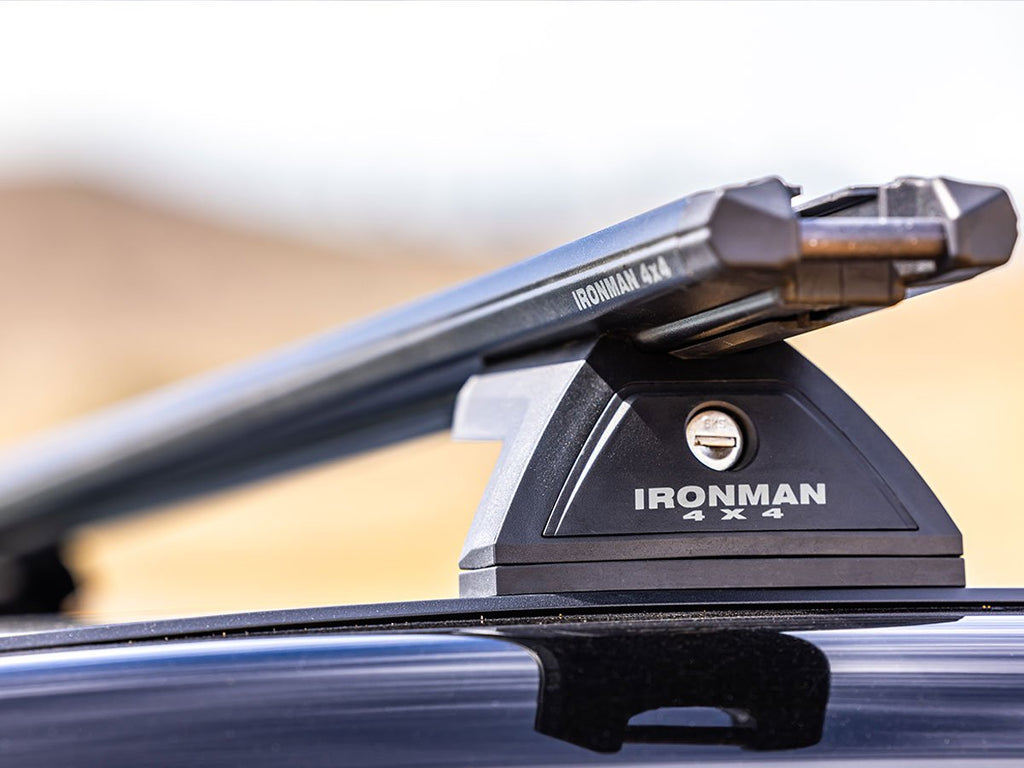

The Atlas Crossbars are constructed of extruded aluminium, designed with an integrated T-slot channel for easy fitment of a wide range of accessories and tie-down points, while each end also incorporated a tie-down point that will withstand the strongest ratchet straps.
Capacity & Weight
The Ironman 4×4 crossbars are rated to 50kg per crossbar, in a pair capable of 150kg. But do us all a favour, and check with your manufacturer what the roof load limit is for your vehicle – subtract the weight of the roof rack system and then only load your crossbars to the remaining capacity!
The Atlas crossbars paired with a fit-kit are unlikely to be more than about 10kg.
Basic math: 75kg dynamic roof load limit – subtract 10kg of hardware = 65kg off capacity to load.
OFF-ROAD ASTERISKS: Unlike some manufacturers, the Ironman 4×4 Atlas has one rating and it applies whether you are on the black-top, corrugated dirt roads, sand, or rocky tracks.
FUN FACT! Most vehicle and accessory manufacturers only publish a ‘dynamic’ load rating. The Dynamic Load Rating is the total weight the roof / rack system can support while being driven. There is also a Static Load Rating, which is usually at least 2 – 3 times the dynamic load. So don’t be afraid that once you get to camp, you won’t be able to actually sleep in your rooftop tent!
